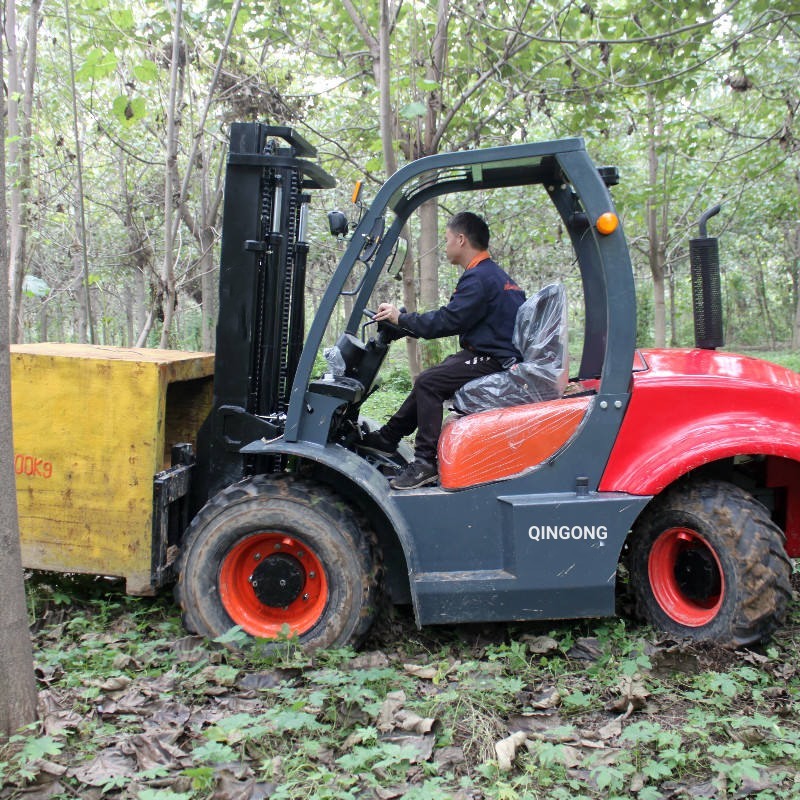

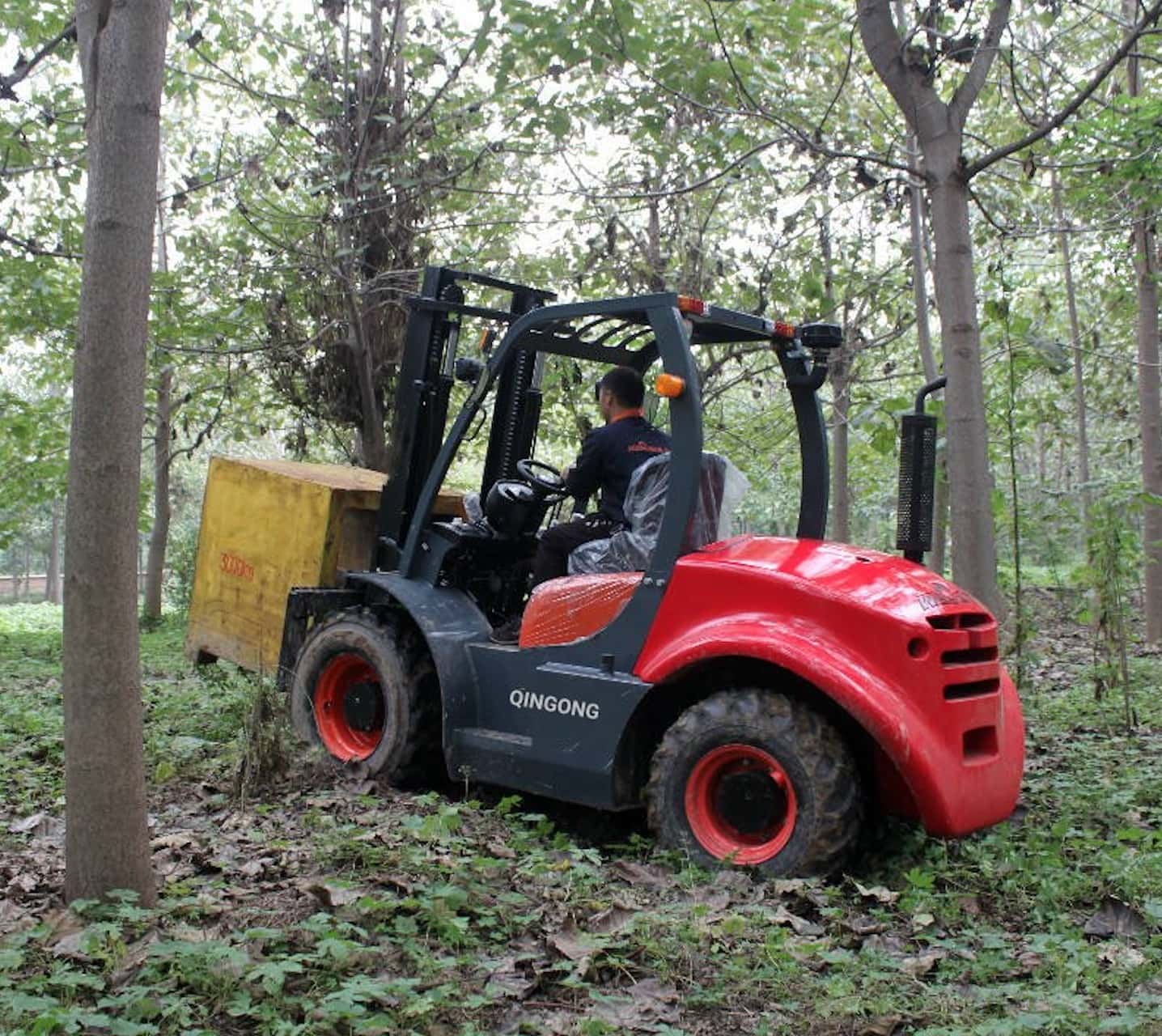

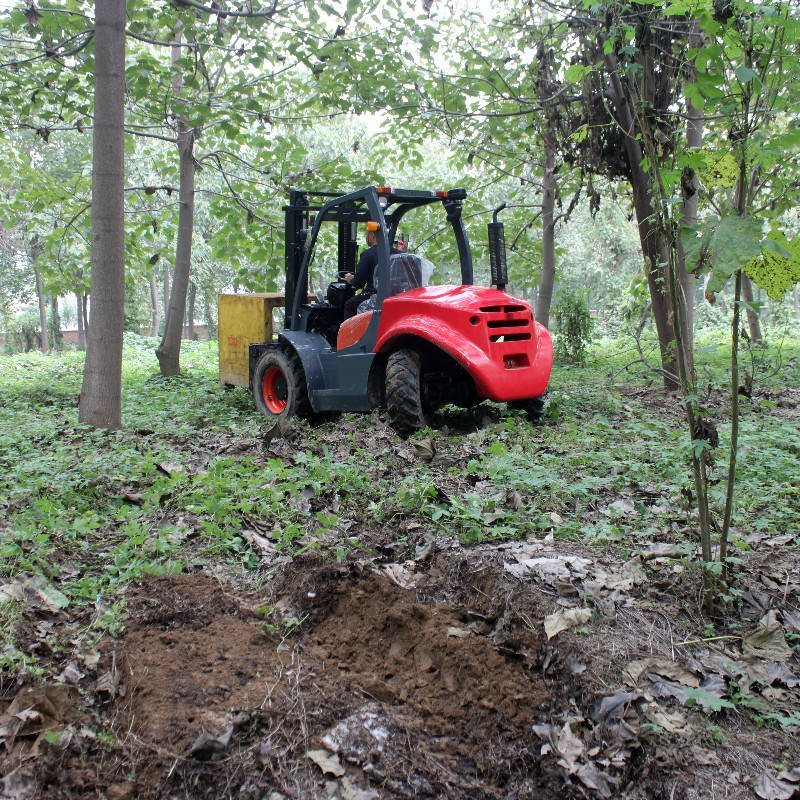

QINGONG 4x4 All Terrian Forklift Advantage:
1.Rough terrain forklift is an engineering vehicle that can safely carry out material loading, unloading, stacking and transportation operations on muddy, field, mountain and other uneven ground;
2.It can install forks or replace multiple attachments to improve its operating efficiency. With full-time four-wheel drive, the power of the forklift is greatly increased.
3.Material loading, unloading, stacking and handling operations have good off-road performance, passing performance and maneuverability.
4.Forklifts play a very important role in the enterprise's logistics system.It is the main force in the material handling equipment. Widely used in various sectors of the national economy such as stations, ports, airports, factories, warehouses and so on.
Specification for QINGONG 4Ton All Terrian Forklift
|
Brand |
|
QINGONG |
|
|
MODEL |
|
CPCD40Y-4WD |
|
|
Load capacity |
kg |
4000 |
|
|
Load center |
mm |
|
|
|
Power type |
|
Diesel |
|
|
Max. lifting speeds (with load) |
mm/s |
400 |
|
|
Max. driving speeds (with / without load) |
km/h |
17.8/19.5 |
|
|
Grade ability(with / without load) |
% |
45 |
|
|
Lifting height |
mm |
3000 |
|
|
Tilting angles (forward-backward) |
|
8/12 |
|
|
Min. turning radius |
mm |
3250 |
|
|
Min. under-clearance |
mm |
230 |
|
|
Dimensions |
Overall length (including fork) |
mm |
4435 |
|
Overall width |
mm |
1600 |
|
|
Overall height (mast lowered) |
mm |
2320 |
|
|
Overall height (mast extend) |
mm |
4270 |
|
|
Overall height to overhead guard |
mm |
2260 |
|
|
Fork overhang |
mm |
598 |
|
|
Wheel base |
mm |
1980 |
|
|
Tread |
Front tread |
mm |
1250 |
|
Rear tread |
mm |
1200 |
|
|
Tyre |
Front tire |
mm |
14-17.5 |
|
Rear tire |
mm |
10.0/75-15.3 |
|
|
Total weight |
kg |
5850 |
|
|
Fork width |
mm |
150 |
|
|
Fork thickness |
mm |
45 |
|
|
Backrest height |
mm |
1230 |
|
|
Fork length |
mm |
1220 |
|
|
Engine |
Model |
|
4JG2 |
