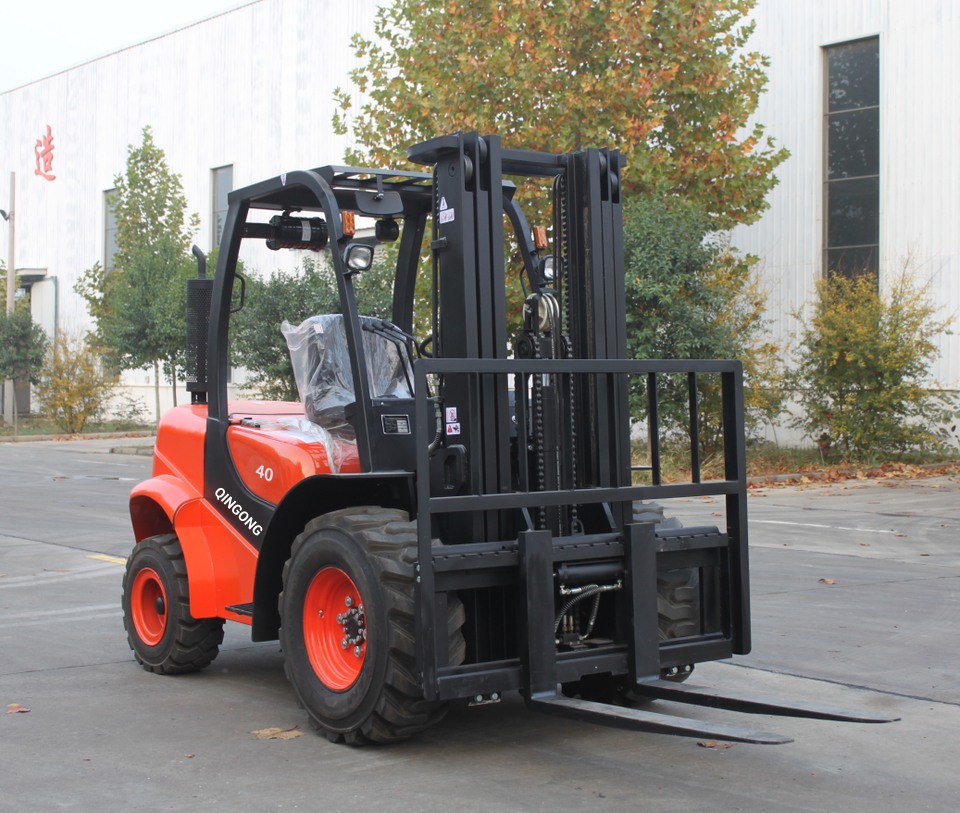

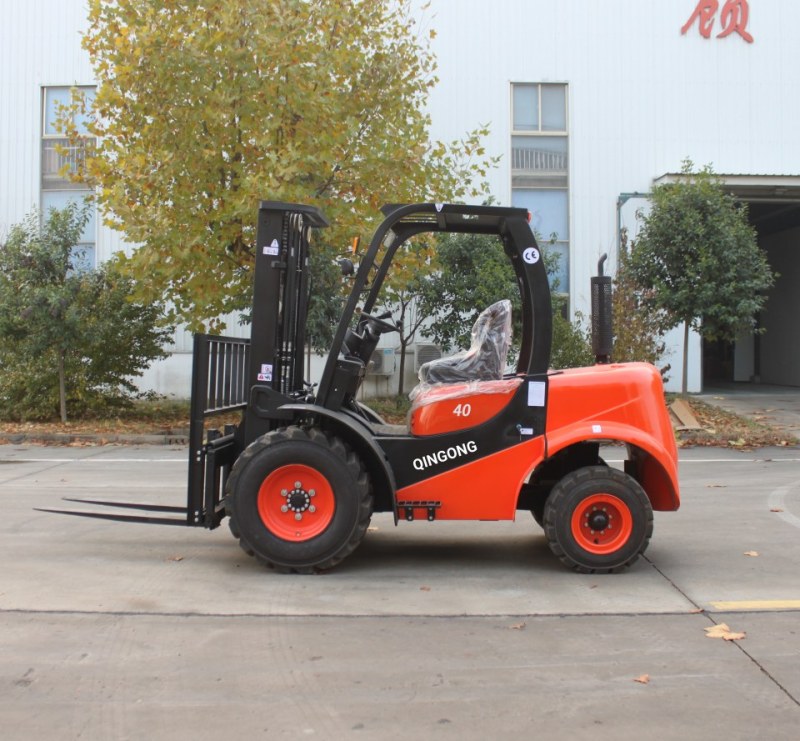

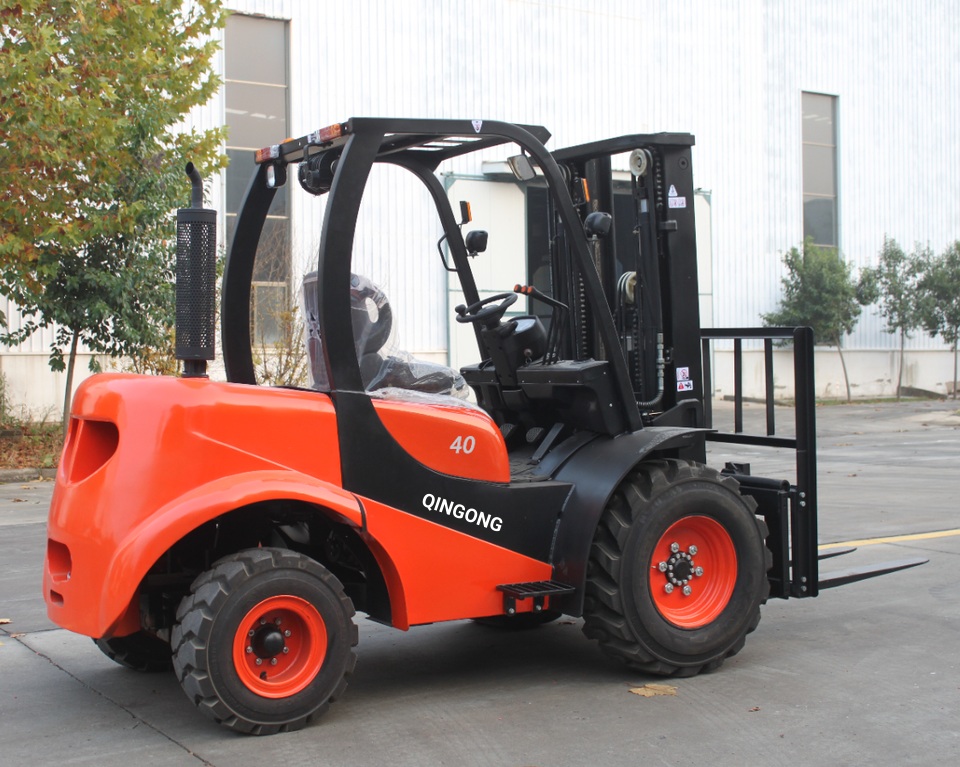

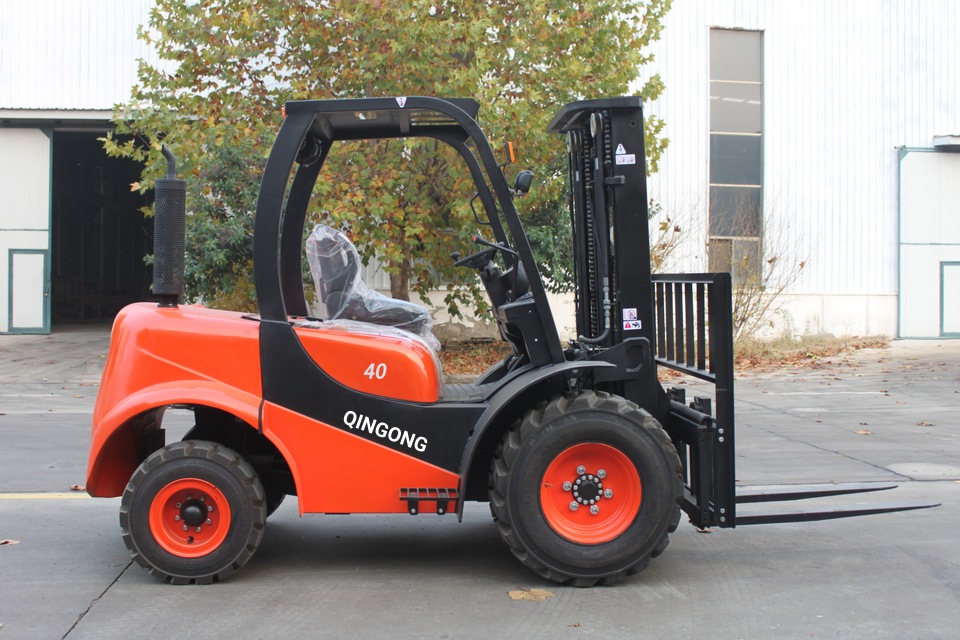

QINGONG 4Ton All Terrian Forklift Truck

Item No.: 00099
1.QINGONG rough terrain forklift is a tough, compact forklift with a two-wheel drive system.
2.The forklift is based on conventional forklift, but built for rough terrain performance.
3.Steer AxleThe steering angle is very small turning radius.
Description
Description

QINGONG  Rough Terrian Forklift Advantage:
1.Professional steering axle is suitable for the worst working environment, especially for the mud road.

2.Transmission is with differential lock.

3. The ground clearance of mast is 280mm, and the ground clearance of main chassis can be320mm, and the angle of departure can be 30 degree, so it has a good passing ability.

4. The driving tire adopts deep figure and big width, and it can make the machine with good stability and     skid resistance.

5.Widen the mast and make the driver have a better view.

6. Better and stronger driving axle adopts cast steel structure.

7. Our rough terrain lift trucks can be equipped with many kinds of engine, for example Japan YANMAR 4TNE98 engine and so on.

Specification for QINGONG 4Ton All Terrian Forklift

General
Brand
QINGONG
Model
CPCD40Y
Rated capacity
kgs
4000
Load center
mm
500
Power type
Diesel
Transmission
Automatic
Dimensions
Lifting height
mm
3000
Free lifting height
mm
80
Turning radius
mm
3100
Overall length
mm
4360
Overall width
1500mm
1620
Overall height (mast lowered)
mm
2320
Overall height (mast raised)
mm
4270
Overall height (overhead guard)
mm
2210
Fork length
mm
1220
Fork width
mm
125
Fork thickness
mm
45
Performance
Max. driving speed
km/h
21/23
Max. lifting speed
mm/s
440
Max. traction
kn
15.8
Gradeability
%
25/30
Tilting angles
°
6/12
Service weight
kg
5150
Engine
Engine model
Xinchai 4D35G engine
Power
kw
48
hp
65
Wheel
Front Tire

14-17.5-14
