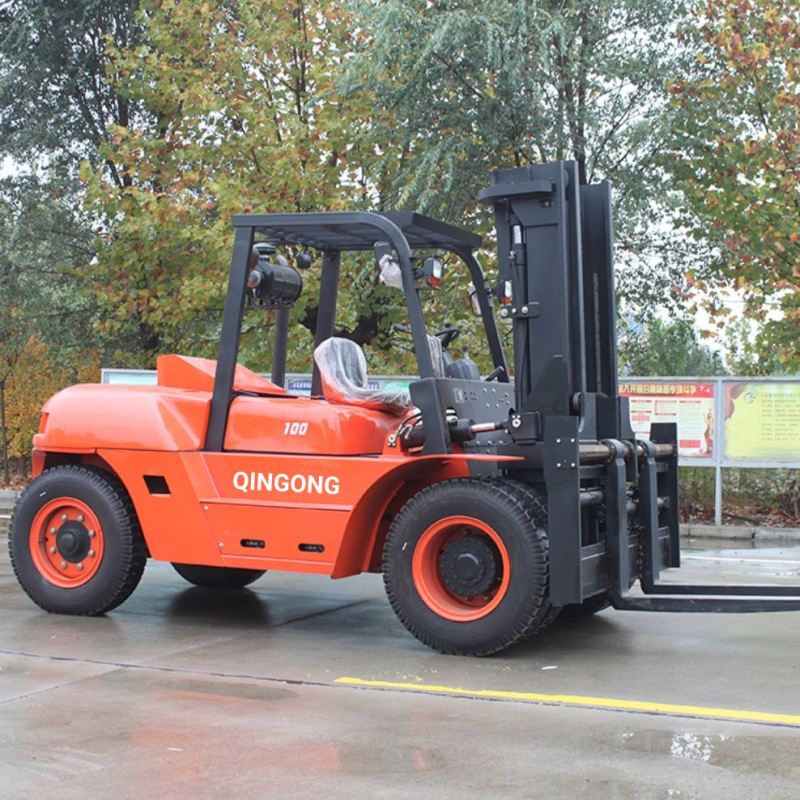

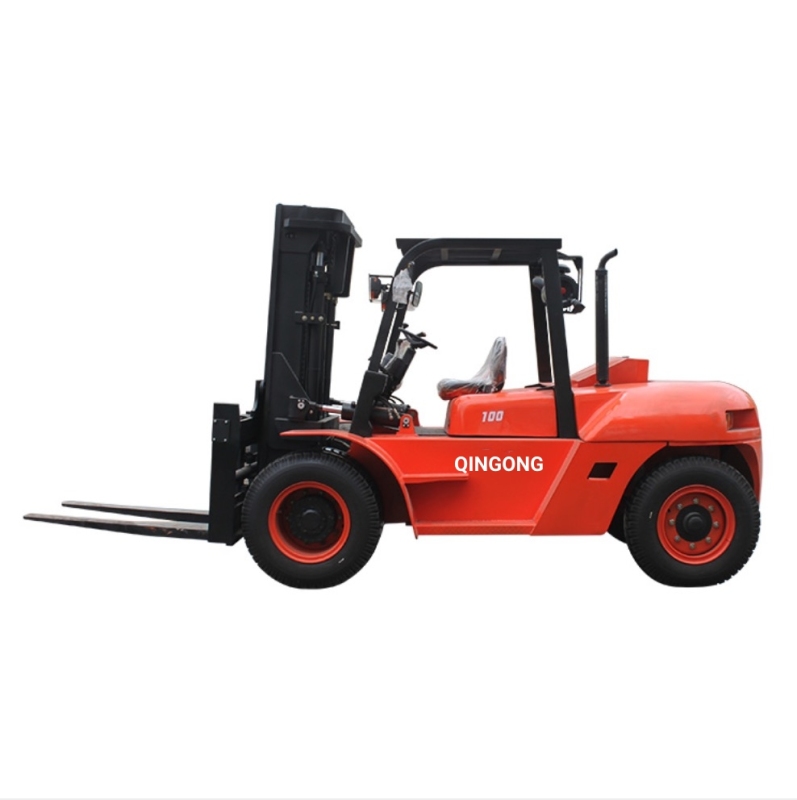

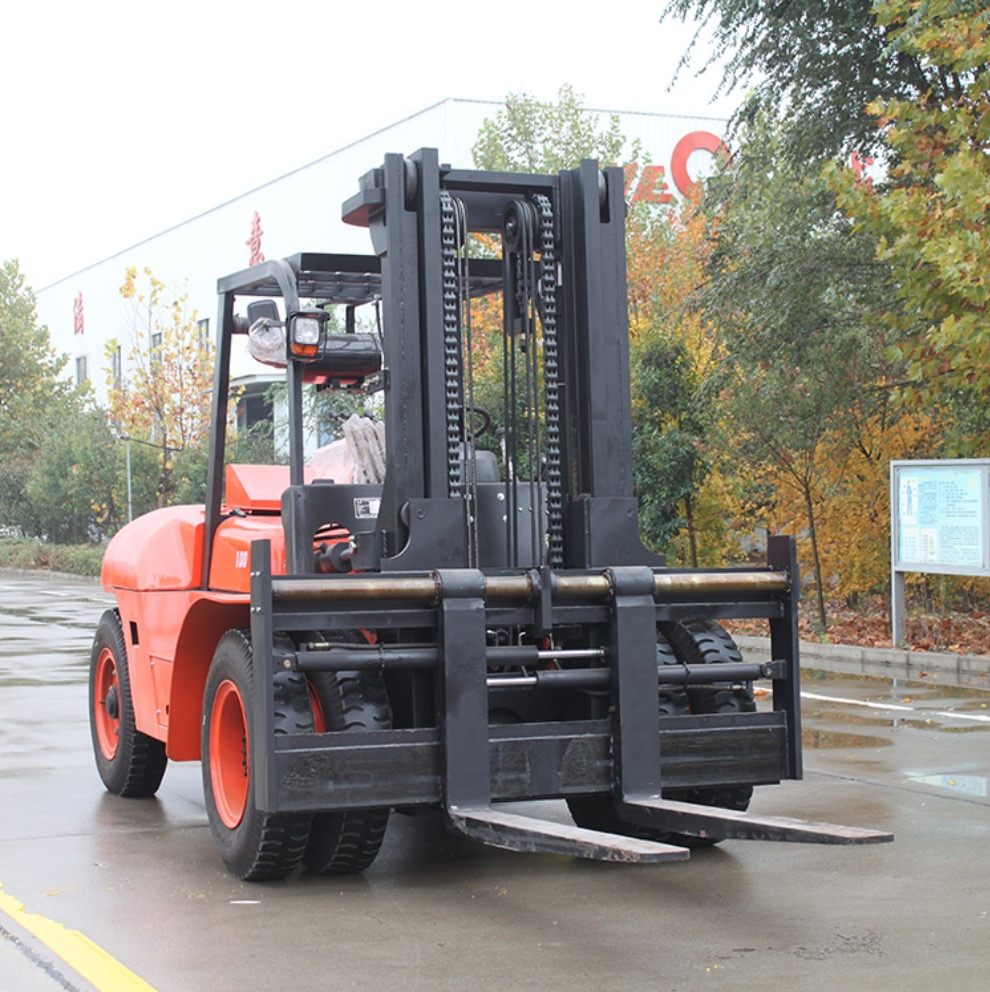

Applications for Qingong 10Ton Forklift Truck:
Along with the kind of engineering that promises unsurpassed performance and productivity in all applications, QINGONG heavy-duty forklift trucks are designed with many features that facilitate maintenance and servicing.
Advantage of Qingong 10Ton Forklift Truck:
1.Strong Power System. QINGONG brand 10Ton outdoor forklifts are all with reliable power accessories. All accessories like engine, gear box are support by domestic and world famous brand, high quality, reliable after-sales. We follow the strict environmental design, all engines match the China Ⅲ or even higher emission standards.
2.Super comfortable. QINGONG brand 5tons forklifts are all with comfortable driving space, adjustable steering wheel and seats, super low and non-slip step, suspension steering axle, storing space, and convenient LCD panel.
3.High Security. Whole perspective mast and backrest, super good view, high strength overhead guard, high place security combination lamp, neutral security features, parking brake, fork lock function(optional),all for safety.
Specification of Qingong 5Ton Forklift Truck
General |
Brand |
QINGONG |
|
Model |
CPCD100 |
|
|
Rated capacity |
10000kg |
|
|
Load center |
600mm |
|
|
Power type |
Diesel |
|
|
Transmission |
Hydraulic |
|
|
Dimensions |
Lifting height |
3000mm |
|
Free lifting height |
195mm |
|
|
Turning radius |
3900mm |
|
|
Overall length |
5480mm |
|
|
Overall width |
2275mm |
|
|
Overall height |
2850mm |
|
|
Overall height |
4297mm |
|
|
Overall height |
2585mm |
|
|
Fork length |
1220mm |
|
|
Fork width |
175mm |
|
|
Fork thickness |
80mm |
|
|
Performance |
Max. driving speed |
16/22km/h |
|
Max. lifting speed |
310mm/s |
|
|
Max. traction |
57kn |
|
|
Gradeability |
19/20% |
|
|
Tilting angles |
6/12° |
|
|
Service weight |
12510kg |
|
|
Engine |
Engine model |
CHAOCHAI6102-BG |
|
Power |
80.9kw |
|
|
Rated speed |
2500rpm |
|
|
Displacement |
5.785L |
|
|
No. of cylinder |
6 |
|
|
Wheel |
Wheel base |
2500mm |
|
Front tire |
9.00-20-14 |
|
|
Rear tire |
9.00-20-14 |
