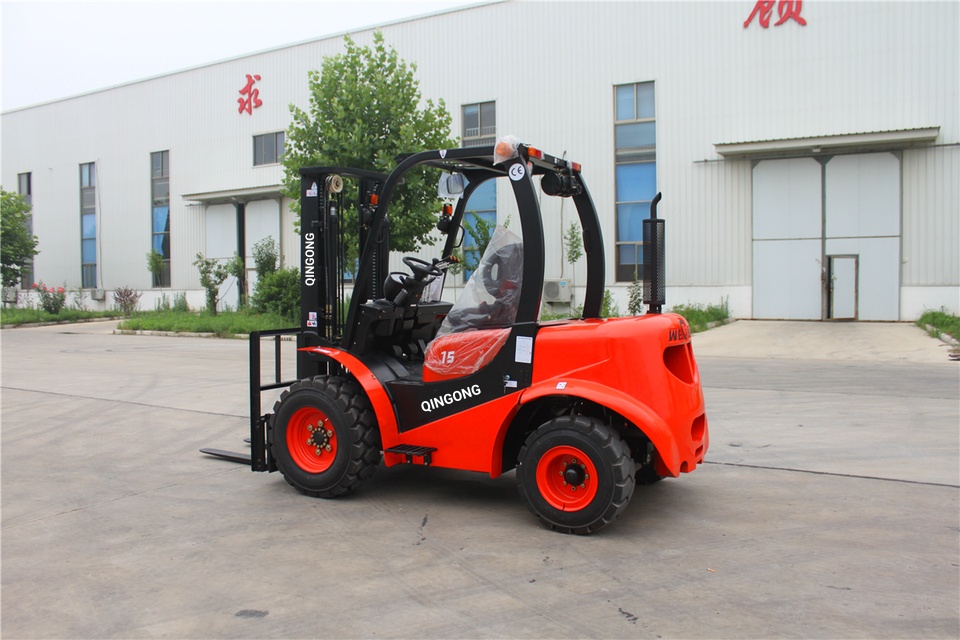

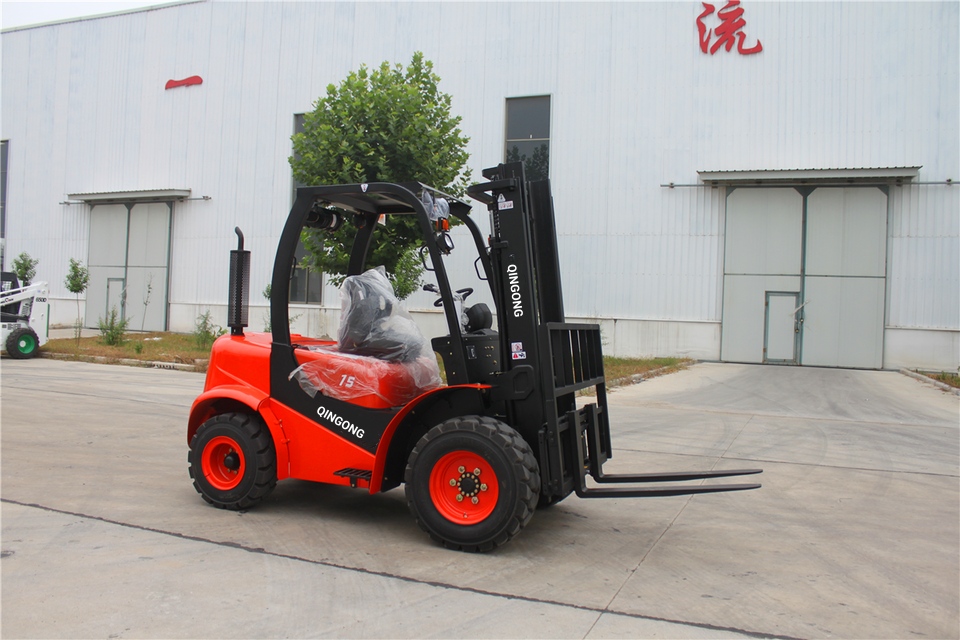

New mini 1.5 ton Rough Terrain Forklift
This new mini 1.5 ton roug terrain forklift is in a compact size to help you work in the tightest applications, and it is specially designed for bad working environment and mud rough road.
Specification for QINGONG 1.5T Rough Terrain Forklift Truck
|
No
|
Item
|
Data
|
|
1
|
Model
|
CPCD15Y
|
|
2
|
Rated capacity
|
1500kgs
|
|
3
|
Load center
|
500mm
|
|
4
|
Transmission
|
Automatic
|
|
5
|
Lifting height
|
3000mm
|
|
6
|
Free lifting height
|
80mm
|
|
7
|
Turning radius
|
2650mm
|
|
8
|
Overall length
|
3730mm
|
|
9
|
Overall width
|
1500mm
|
|
10
|
Overall height
|
2210mm
|
|
11
|
Overall height (mast raised)
|
3995mm
|
|
12
|
Overall height (overhead guard)
|
2210mm
|
|
13
|
Fork length
|
1070mm
|
|
14
|
Fork width
|
122mm
|
|
15
|
Fork thickness
|
40mm
|
|
16
|
Max. driving speed (with/without load)
|
17.7/18.3km/h
|
|
17
|
Max. lifting speed (with load)
|
520mm/s
|
|
18
|
Gradeability (with/without load)
|
25/30 degree
|
|
19
|
Min. ground clearance
|
230mm
|
|
20
|
Tilting angles (forward/backward)
|
6/12 degree
|
|
21
|
Service weight
|
3550kgs
|
|
22
|
Engine model
|
Xinchai C490BPG engine
|
|
23
|
Power
|
40kw/54.4hp
|
|
24
|
Rated speed
|
2650rpm
|
|
25
|
Displacement
|
2.67L
|
|
26
|
No. of cylinder
|
4
|
|
27
|
Front tire
|
10-16.5-12
|
|
28
|
Rear tire
|
23*9-10
|
