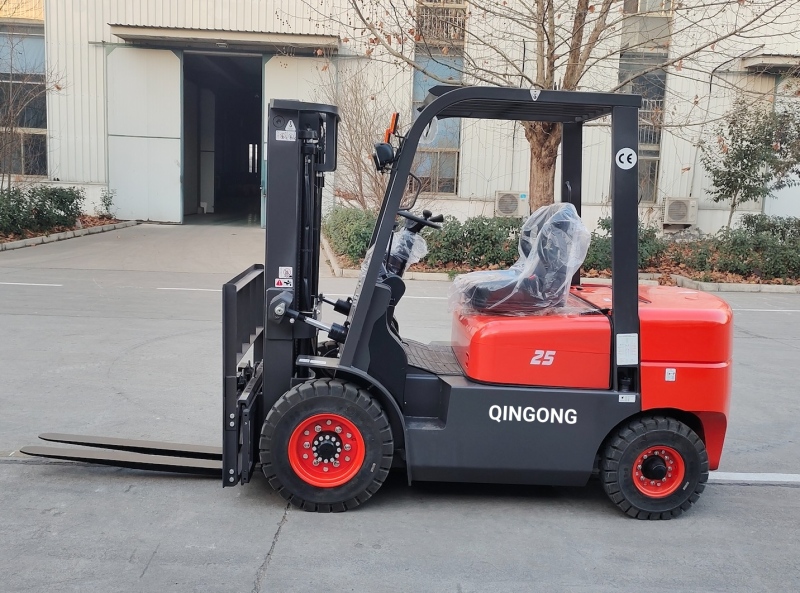

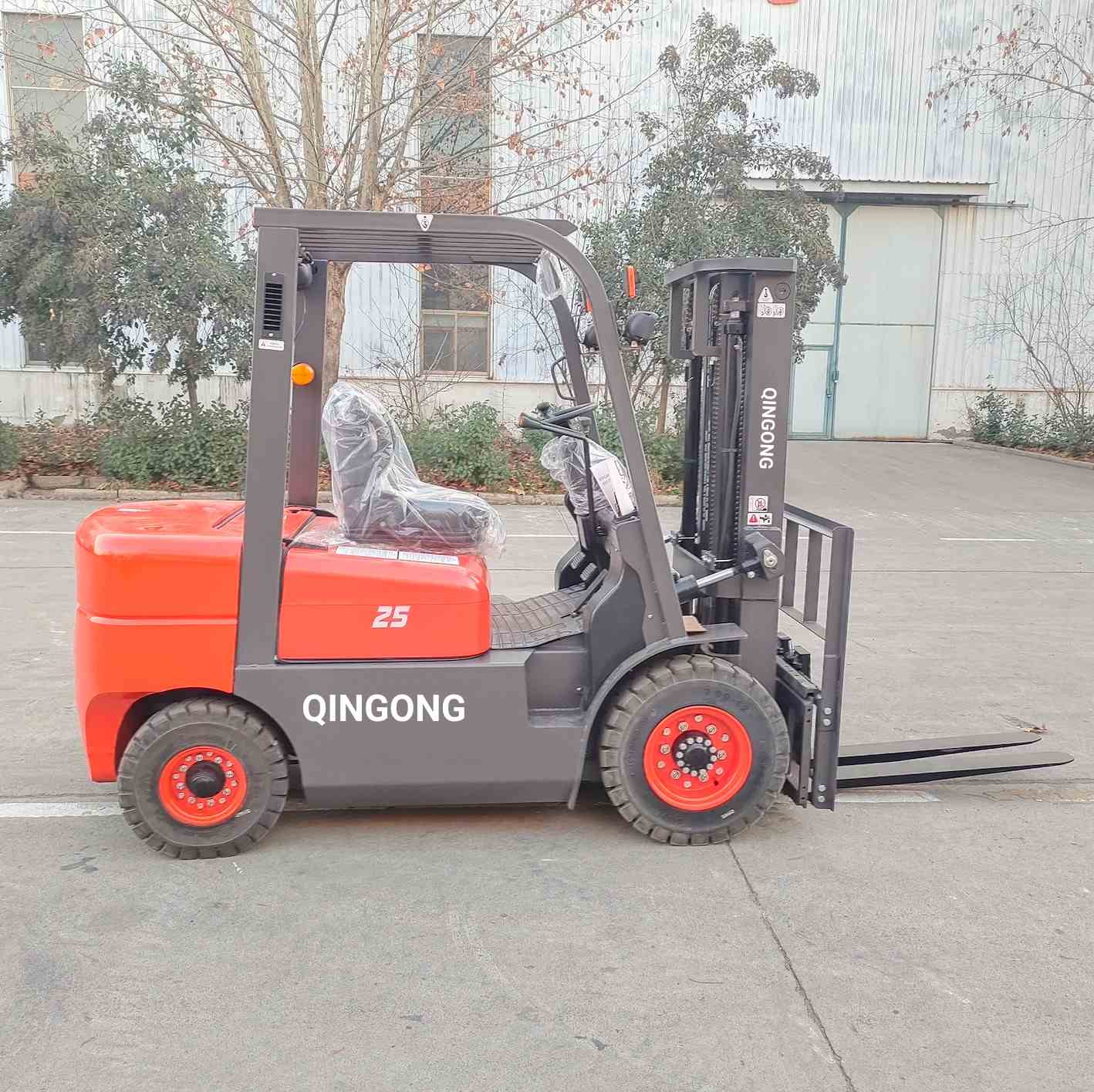

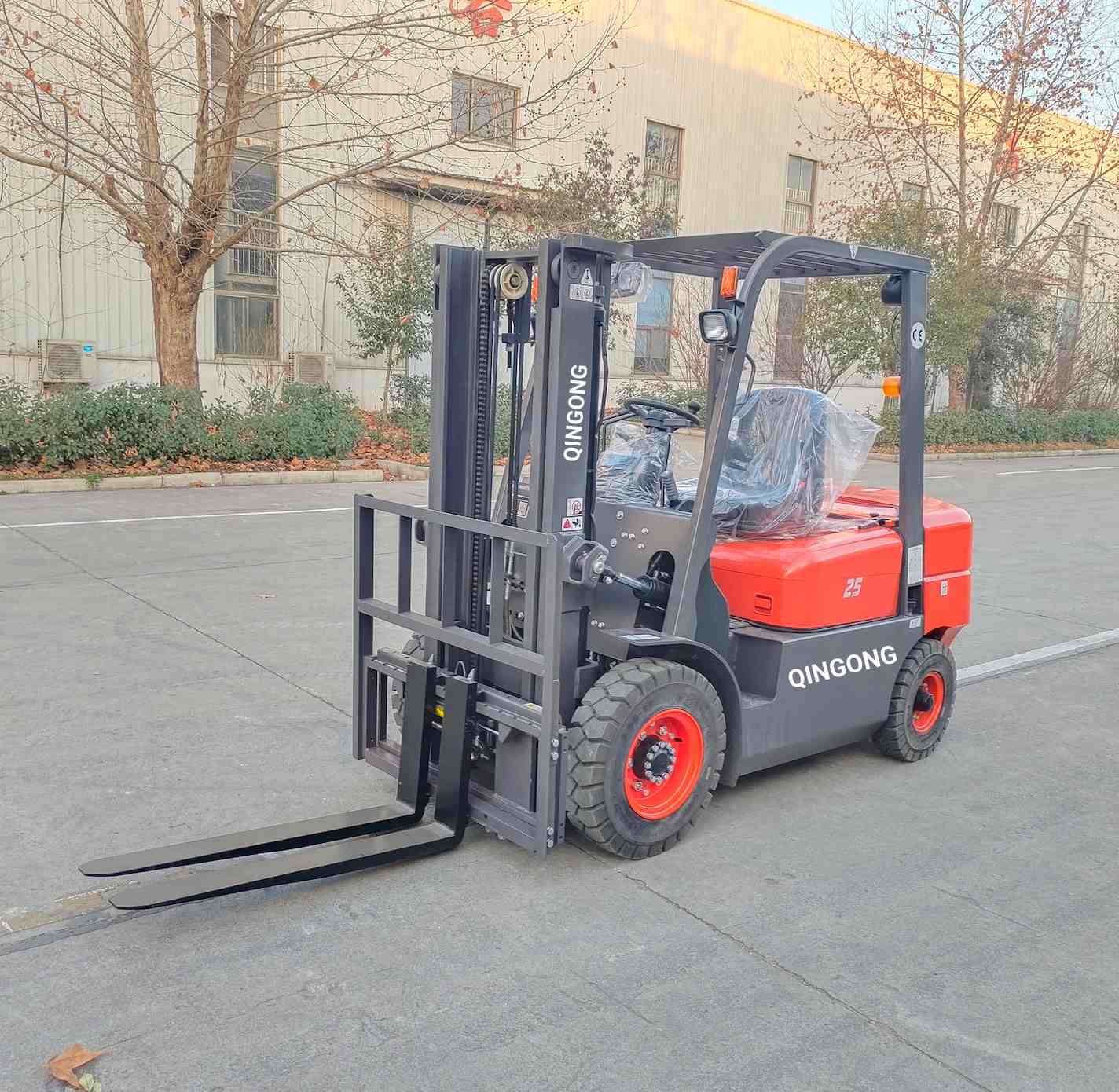

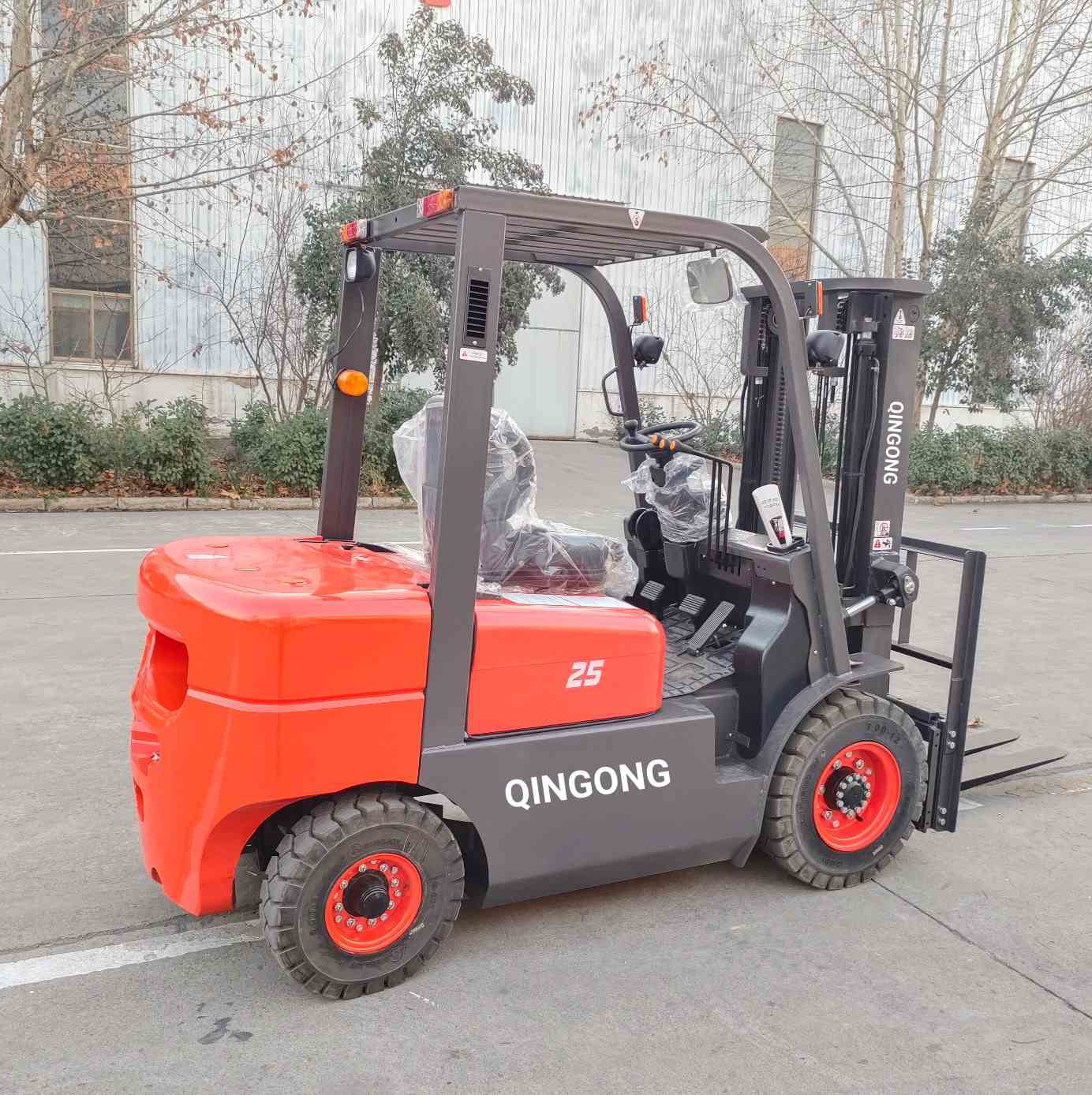

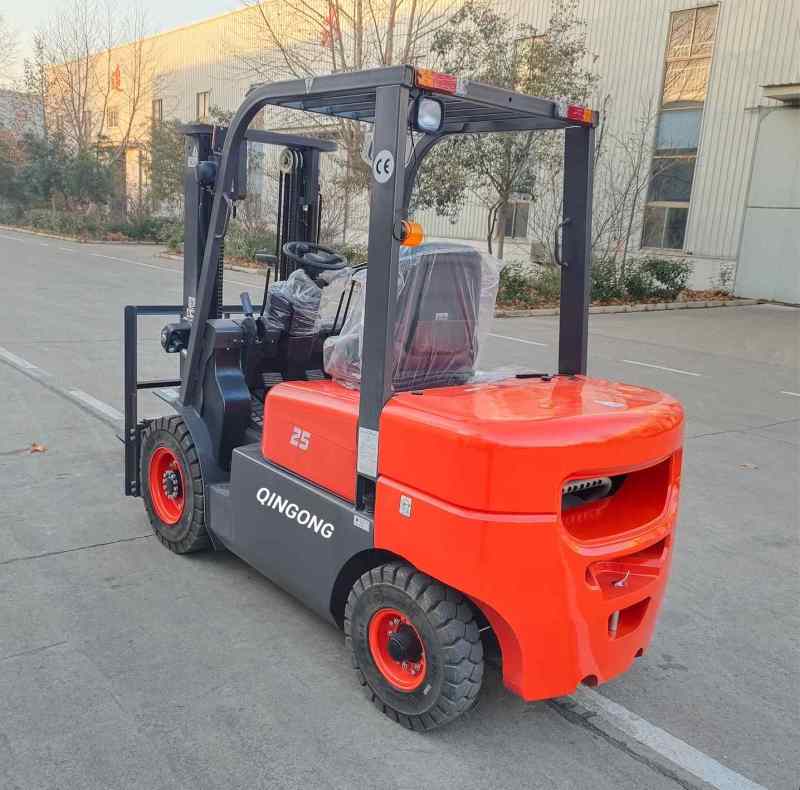

Applications for Qingong 2.5Ton Diesel Forklift Truck:
As lifting and transporting machineries, 2.5Ton Forklift is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on.
Product Features of Qingong 2.5Ton Diesel Forklift Truck:
1, Standard lifting height: 3000mm with wide view mast
2, Load center: 500mm
3, Equipped with Xinchai/Quanchai engine
4, Advanced ergonomical Design
5, Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.
6, The smaller steering wheel, extra space for foot and operator space, wider forward visibility, all these improve operator’s comfort and release operator’s fatigue.
8, Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect and needs no seal ring. So it won’t leak oil due to the sealing ring aging
9, The applied integral engine cover strengthens the rigidity of the cover and reduces the noise at the same time.
Specification of Qingong 2.5Ton Diesel Forklift Truck
General |
Brand |
QINGONG |
||
|
1 |
Model |
CPCD25FR |
||
|
2 |
Rated capacity |
kg |
2500 |
|
|
3 |
Load center |
mm |
500 |
|
|
4 |
Power type |
Diesel |
||
|
5 |
Transmission |
Hydraulic/Mechanical |
||
|
Dimensions |
6 |
Lifting height |
mm |
3000 |
|
7 |
Free lifting height |
mm |
60 |
|
|
8 |
Turning radius |
mm |
2450 |
|
|
9 |
Overall length |
mm |
3605 |
|
|
10 |
Overall width |
mm |
1160 |
|
|
11 |
Overall height |
mm |
2095 |
|
|
12 |
Overall height |
mm |
4080 |
|
|
13 |
Overall height |
mm |
2095 |
|
|
14 |
Fork length |
mm |
1070 |
|
|
15 |
Fork width |
mm |
122 |
|
|
16 |
Fork thickness |
mm |
40 |
|
|
Performance |
17 |
Max. driving speed |
km/h |
17/19 |
|
18 |
Max. lifting speed |
mm/s |
400 |
|
|
19 |
Max. traction |
kn |
15/10 |
|
|
20 |
Gradeability |
% |
15/20 |
|
|
21 |
Tilting angles |
° |
6/12 |
|
|
22 |
Service weight |
kg |
3600 |
|
|
Engine |
23 |
Engine model |
490BPG engine |
|
|
24 |
Power |
kw |
39 |
|
|
25 |
Rated speed |
rpm |
2650 |
|
|
26 |
Displacement |
L |
2.67 |
|
|
27 |
No. of cylinder |
4 |
||
|
Wheel |
28 |
Front overhang |
mm |
451 |
|
29 |
Wheel base |
mm |
1640 |
|
|
30 |
Front tread |
mm |
970 |
|
|
31 |
Rear tread |
mm |
970 |
|
|
32 |
Front tire |
7.00-12 |
||
|
33 |
Rear tire |
6.00-9 |
||
