Product Features:
●Improved driver's view
Standard configuration of wide view mast, compact structure of mast and tube pulley block;
Overhead guard with large arc and grid tray with optimized angle enlarge driver's upper view.
● Improved operation comfort
100% enlarged accelerator panel and 40% enlarged brake pedal improve driver's foot operating comfort;
Ratchet hand brake has different brake force on slope and ground, reducing driver's fatigue.
● High efficiency and energy-saving
The use of electric truck dedicated tire with pattern saves more than 10% of the energy during travelling;
The professional matching design of the components prolongs the battery working time about 10%.

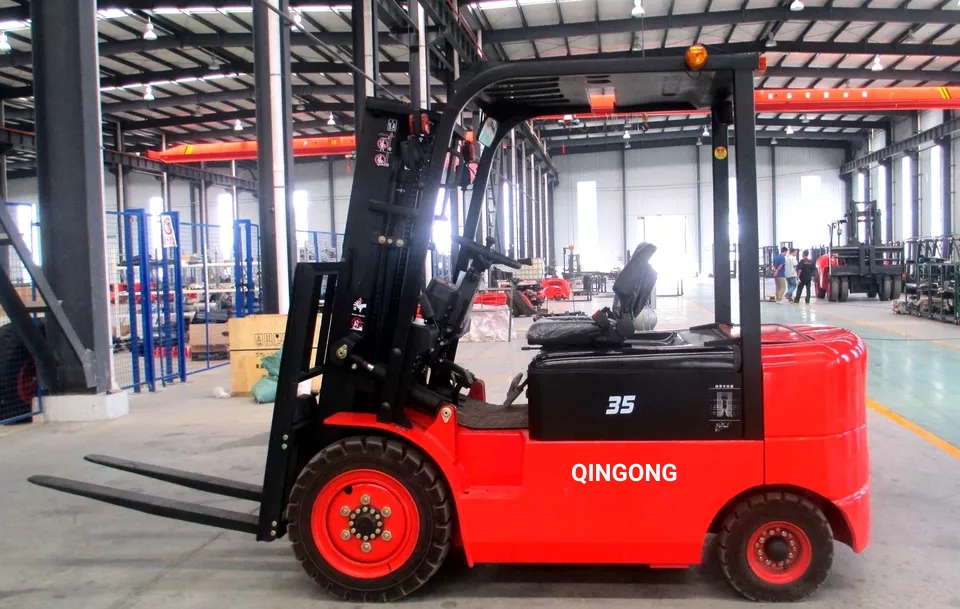

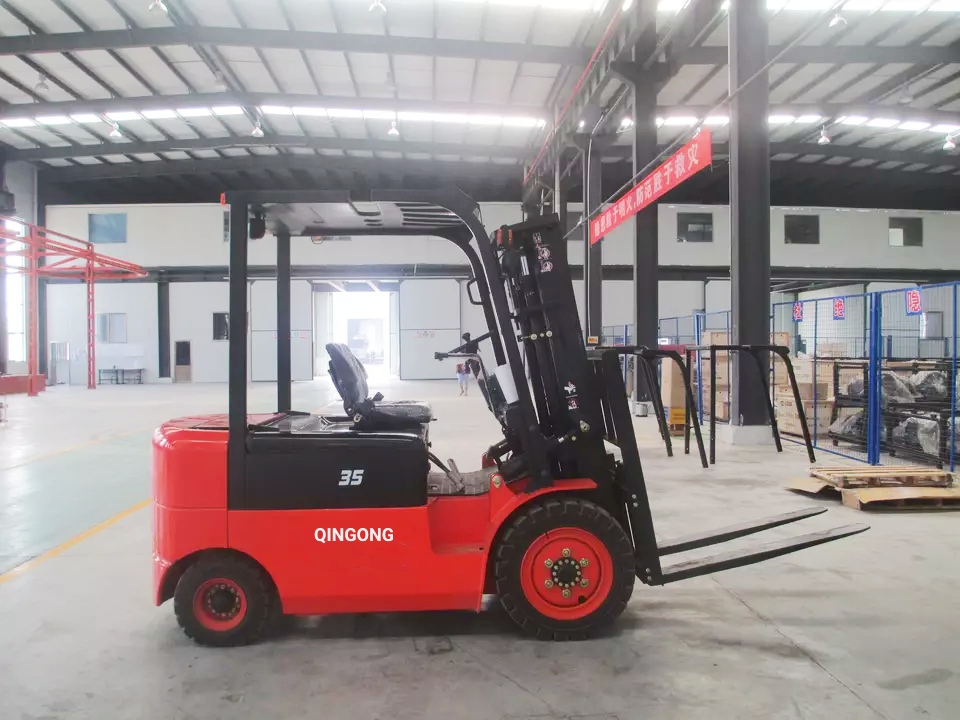

Specification for QINGONG 3.5T Electric Forklift Trucks
General |
Brand |
QINGONG |
||
|
1 |
Model |
CPD35J |
||
|
2 |
Rated capacity |
kg |
3500 |
|
|
3 |
Load center |
mm |
500 |
|
|
4 |
Power type |
Battery |
||
|
Dimensions |
5 |
Lifting height |
mm |
3000 |
|
6 |
Free lifting height |
mm |
75 |
|
|
7 |
Turning radius |
mm |
2400 |
|
|
8 |
Overall length |
mm |
3745 |
|
|
9 |
Overall width |
mm |
1240 |
|
|
10 |
Overall height |
mm |
2200 |
|
|
11 |
Overall height |
mm |
4260 |
|
|
12 |
Overall height |
mm |
2200 |
|
|
13 |
Fork length |
mm |
1220 |
|
|
14 |
Fork width |
mm |
125 |
|
|
15 |
Fork thickness |
mm |
45 |
|
|
Performance |
16 |
Max. driving speed |
km/h |
13.5/15 |
|
17 |
Max. lifting speed |
mm/s |
285 |
|
|
18 |
Max. traction |
kn |
13 |
|
|
19 |
Gradeability |
% |
15 |
|
|
20 |
Tilting angles |
° |
6/12 |
|
|
21 |
Service weight |
kg |
5160 |
|
|
Motor |
22 |
Traction motor |
XQ-10-1C |
|
|
23 |
Lifting motor |
XQD-13-3S |
||
|
Battery |
24 |
Battery type |
40-DA-500 |
|
|
25 |
Battery voltage/capacity |
V/Ah |
80/500 |
|
|
Wheel |
26 |
Front overhang |
mm |
495 |
|
27 |
Wheel base |
mm |
1700 |
|
|
28 |
Front tread |
mm |
1000 |
|
|
29 |
Rear tread |
mm |
980 |
|
|
30 |
Front tire |
28×9-15 |
||
|
31 |
Rear tire |
18×7-8 |
