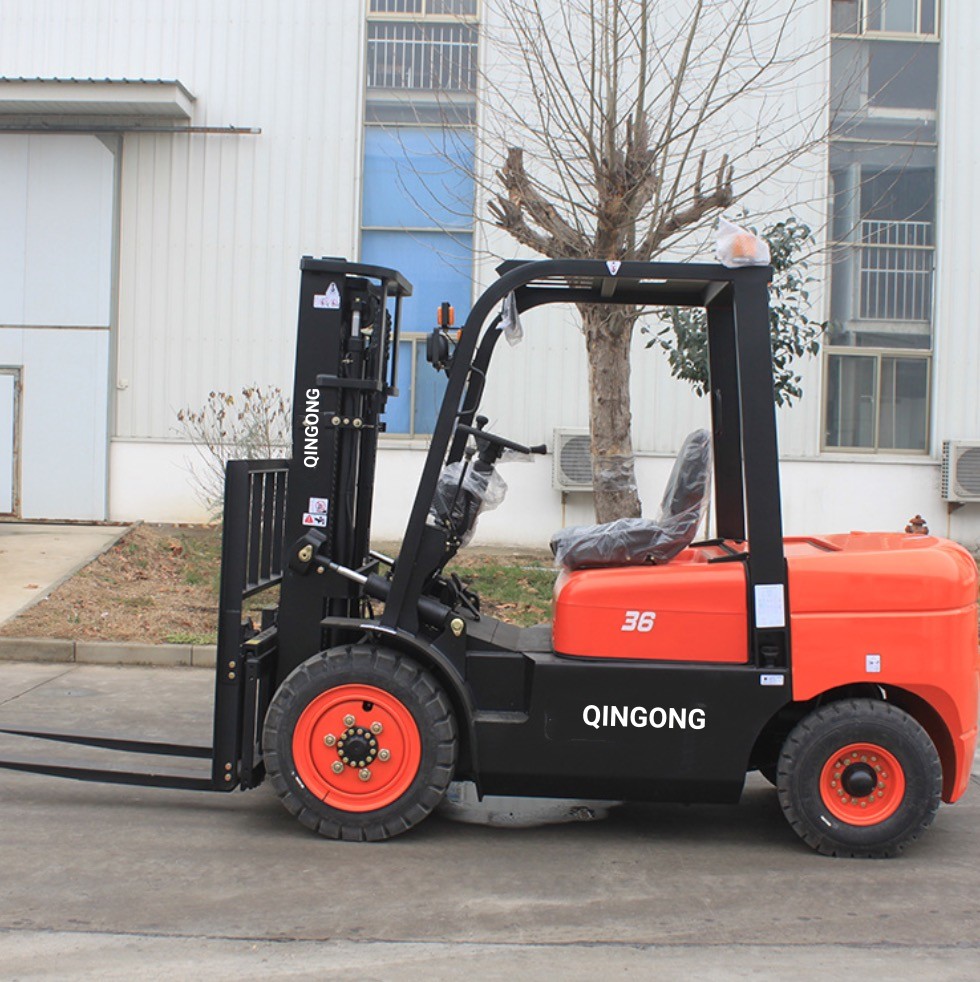

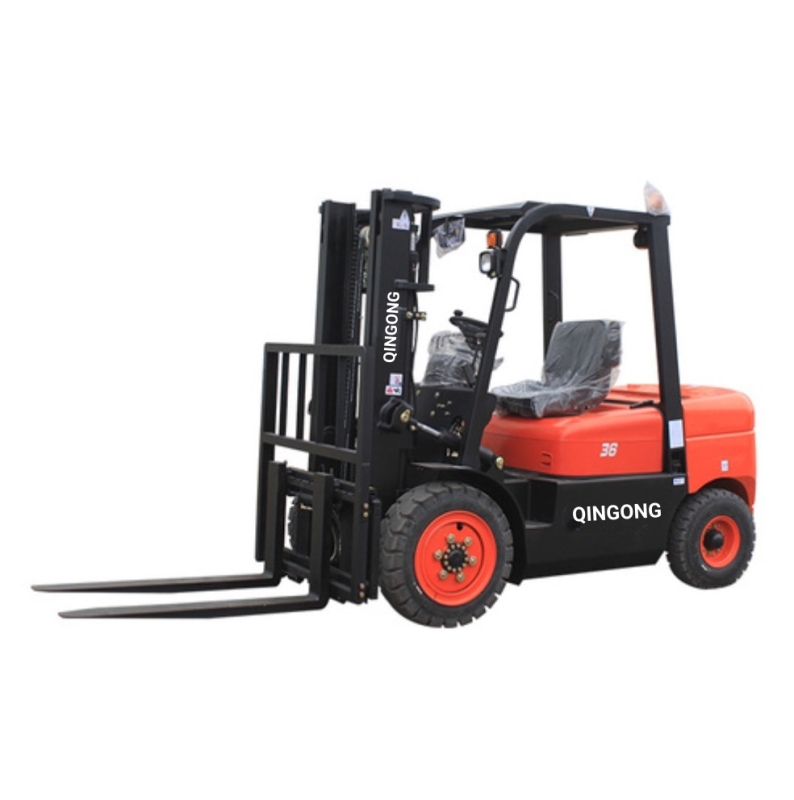

Applications for Qingong 3.6Ton Diesel Forklift Truck:
As lifting and transporting machineries, 3.6Ton Diesel Forklift is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on.
Product Features of Qingong 3.6Ton Diesel Forklift Truck:
1, Standard lifting height: 3000mm with wide view mast
2, Optional 2-stage 3300mm mast, 2-stage 3500mm mast, 2-stage 4000mm mast, 2-stage 4500mm mast, 2-stage 5000mm mast, 3-stage 4500mm mast, 3-stage 4800mmm mast, 3-stage 5000mm mast, 3-stage 5500mm mast, 3-stage 6000mm mast, 3-stage 7300mm mast, 3-stage 8000mm mast.
3, Load center: 500mm
4, Equipped with Xinchai/Quanchai engine or imported Isuzu/Yanmar/Mitsubishi/engine
Specification of Qingong 3.6Ton Diesel Forklift Truck
|
MODEL |
CPCD36FR |
|
|
Load capacity |
3600 kg |
|
|
Load center |
500 mm |
|
|
Power type |
Diesel |
|
|
Max. lifting speeds(with load) |
475mm/s |
|
|
Max. driving speeds(with/without load) |
18/19km/h |
|
|
Max towering (with load) |
16/11kn |
|
|
Grade ability (with load) |
15/20 % |
|
|
Lifting height (H1) |
3000mm |
|
|
Free lift |
80 mm |
|
|
Tilting angles(forward α-backward β) |
6°/12° |
|
|
Min. turning radius |
2460mm |
|
|
Min. Right angle aisle width |
2070mm |
|
|
Min. under-clearance |
135mm |
|
|
Dimensions |
Overall length(including fork) (A) |
4040 mm |
|
|
Overall width (B) |
1230mm |
|
|
Overall height(mast lowered) (H) |
2110 mm |
|
|
Overall height(mast extended) (H2 ) |
4270mm |
|
Overall height to overhead guard (H3) |
2110mm |
|
|
Fork overhang (A1) |
465mm |
|
|
Wheel base(A2) |
1700 mm |
|
|
Tread |
Front tread(B1) |
1000 mm |
|
|
Rear tread (B2) |
970mm |
|
Tire |
Front tire |
28×9-15 |
|
|
Rear tire |
6.50-10 |
|
Total weight |
4600kg |
|
|
Fork width(B3) |
125 mm |
|
|
Fork thickness(H4) |
50 mm |
|
|
Backrest height |
1225 mm |
|
|
Fork length (A3) |
1220mm |
|
|
Engine |
Engine model |
490 |
|
|
Rated power |
39 kw |
|
|
Rotate speed at rated power |
2650rpm |
|
|
Max. Torque |
157 nm |
|
|
Rotate speed at max. Torque |
1980 rpm |
