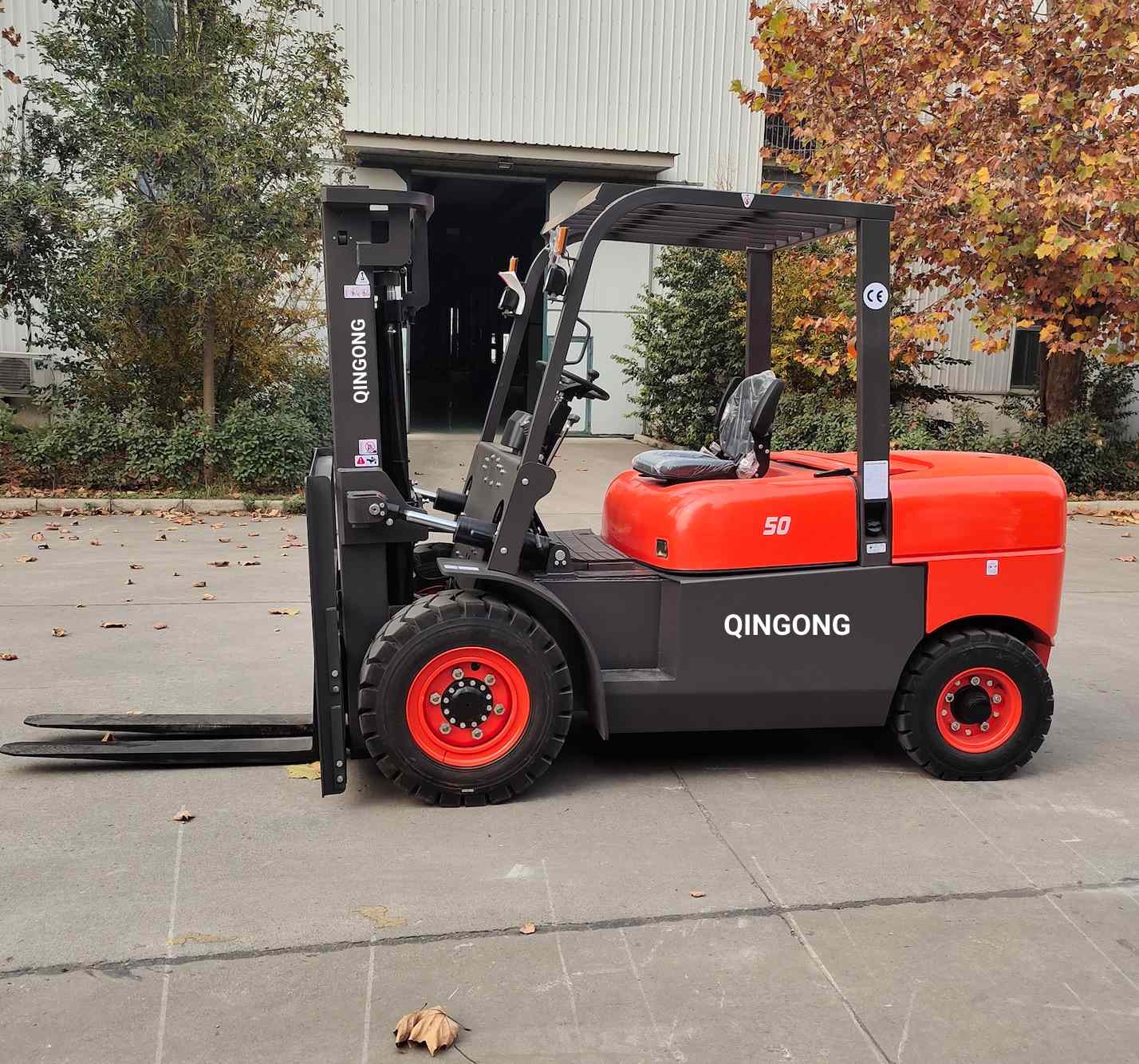

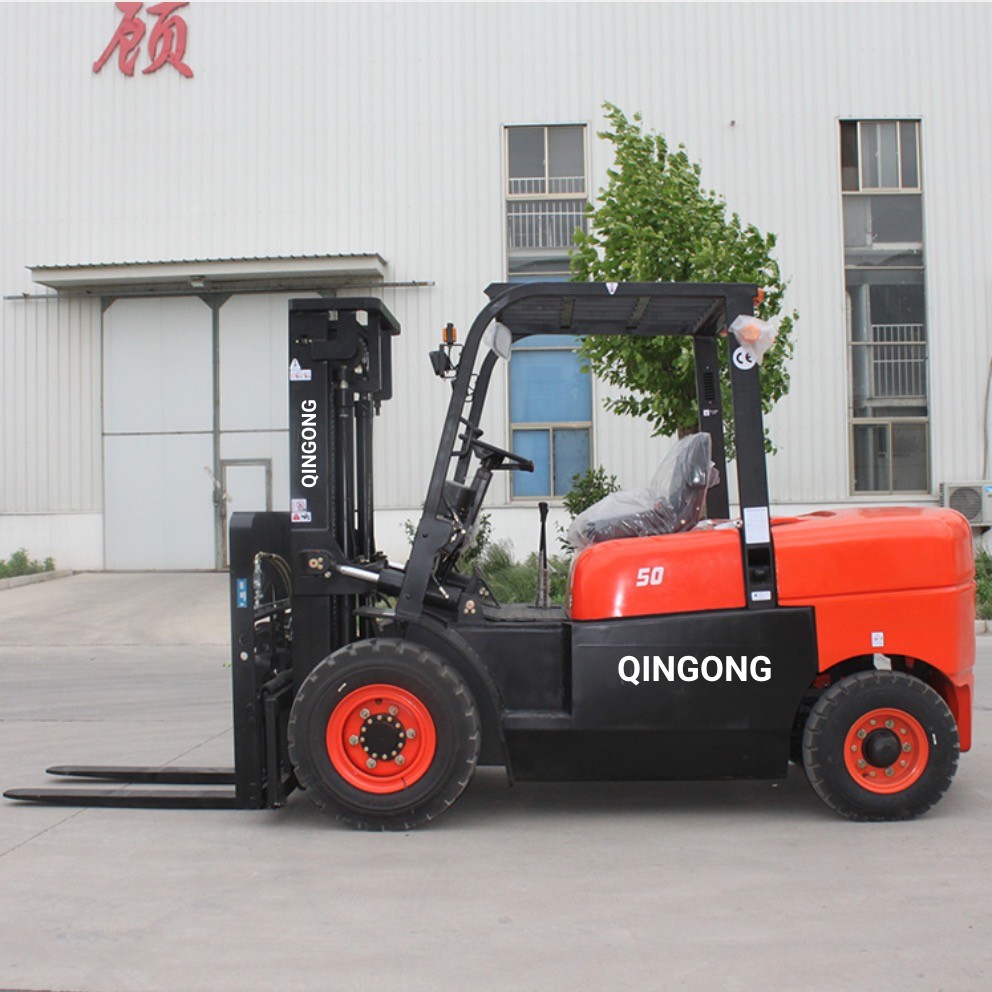

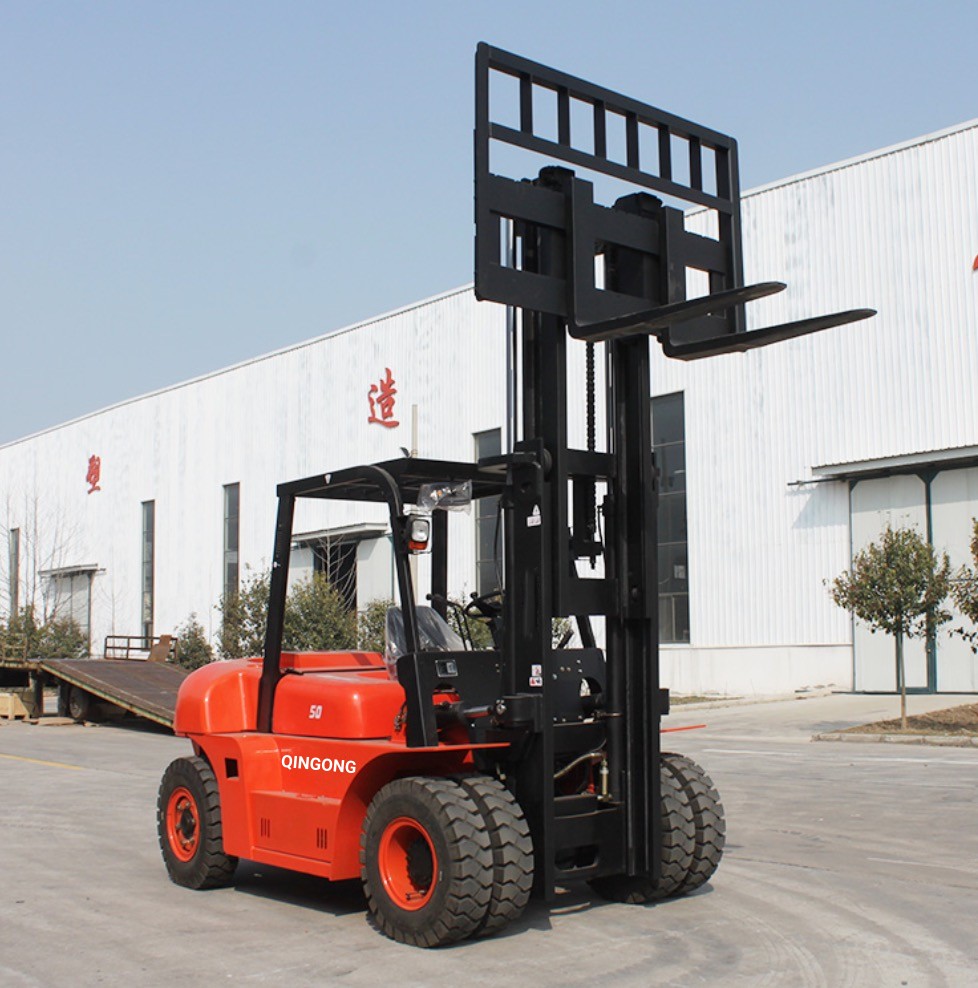

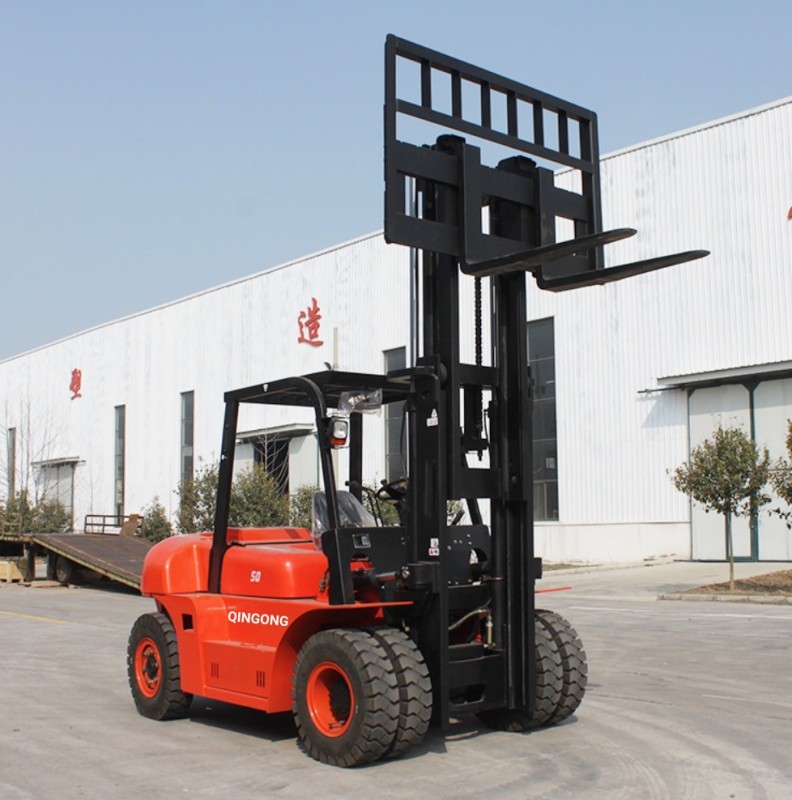

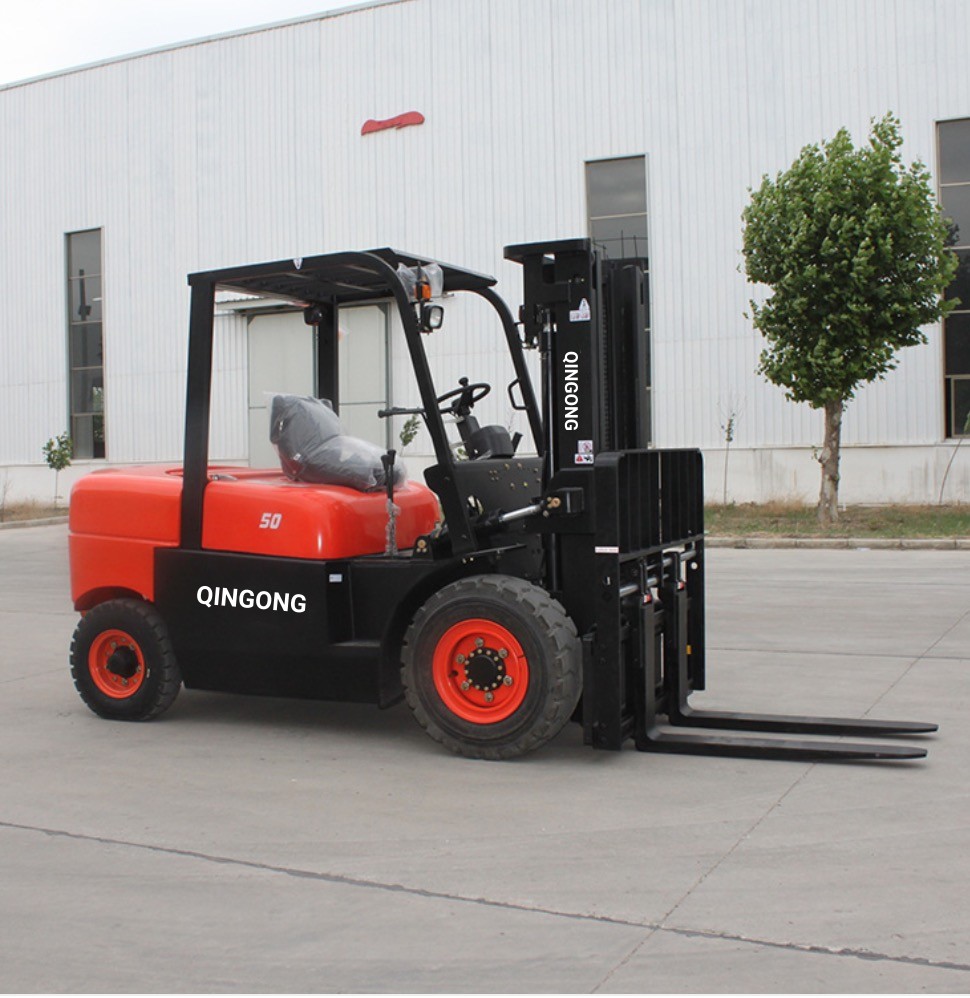

Applications for Qingong 5Ton Diesel Forklift Truck:
As lifting and transporting machineries, 5Ton diesel forklift is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on.
Advantage of Qingong 5Ton Diesel Forklift Truck:
1.Strong Power System. QINGONG brand 5Ton outdoor forklifts are all with reliable power accessories. All accessories like engine, gear box are support by domestic and world famous brand, high quality, reliable after-sales. We follow the strict environmental design, all engines match the China Ⅲ or even higher emission standards.
2.Super comfortable. QINGONG brand 5tons disel forklifts are all with comfortable driving space, adjustable steering wheel and seats, super low and non-slip step, suspension steering axle, storing space, and convenient LCD panel.
3.High Security. Whole perspective mast and backrest, super good view, high strength overhead guard, high place security combination lamp, neutral security features, parking brake, fork lock function(optional),all for safety.
Specification of Qingong 5Ton diesel Forklift Truck
|
MODEL |
CPCD50F |
|
|
Load capacity |
5000 kg |
|
|
Load center |
500 mm |
|
|
Power type |
Diesel |
|
|
Max. lifting speeds(with load) |
340 mm/s |
|
|
Max. driving speeds(with/without load) |
20/22 km/h |
|
|
Max towering (with load) |
30/17 kn |
|
|
Grade ability(with load) |
15/20% |
|
|
Lifting height (H1) |
3000 mm |
|
|
Free lift |
150 mm |
|
|
Tilting angles(forward α-backward β) |
6°/12° |
|
|
Min. turning radius |
3000 mm |
|
|
Min. Right angle aisle width |
2750 mm |
|
|
Min. under-clearance |
170 mm |
|
|
Dimensions |
Overall length(including fork) (A) |
4370 mm |
|
Overall width (B) |
1400 mm |
|
|
Overall height(mast lowered) (H) |
2330 mm |
|
|
Overall height(mast extended) (H2 ) |
4265 mm |
|
|
Overall height to overhead guard(H3) |
2330 mm |
|
|
Fork overhang (A1) |
585 mm |
|
|
Wheel base (A2) |
2150 mm |
|
|
Tread |
Front tread (B1) |
1180 mm |
|
Rear tread (B2) |
1190 mm |
|
|
Tire |
Front tire |
300-15 |
|
Rear tire |
7.00-12 |
|
|
Total weight |
6550 kg |
|
|
Fork width (B3) |
150 mm |
|
|
Fork thickness (H4) |
55 mm |
|
|
Backrest height |
1275 mm |
|
|
Fork length (A3) |
1220 mm |
|
|
Engine |
Engine model |
4C6 |
|
Rated power |
62.5 kw |
|
|
Rotate speed at rated power |
2200 rpm |
|
|
Max. Torque |
300 nm |
|
|
Displacement |
4.95L |
|
